KM B5 series


KM B5

Kawaguchi injection molding machine,KMB5 series totally provide you greater efficiency with the advanced features through adopting the customers' requirements for achieving various improvements.
 KM B5


CLAMP




toggle

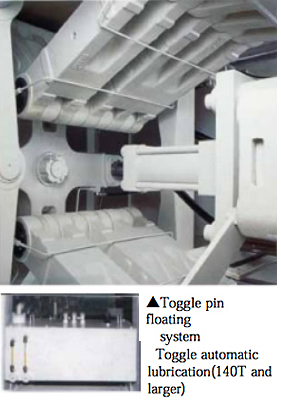

It is necessary for clamping unit, receiving repeatable heavy loads, to be lubricated periodically for keeping high durability and accuracy.
Therefore, we equip the automatic lubrication system as standard with toggle link portion for appropriate and automatic lubrication, linking with the motion of mold opening and closing.
This system releases you from the problems caused by run out of lubricating oil, for alarm appears in the case lubrication is not done every fixed cycle.
In addition, much more improvements in durability is made by the toggle pins adopting Kawaguchi unique floating system which can prevent corrosion and wear.




INJECTION


Variety Of screw design

kmb3スクリュ_02kmb3スクリュ_03
Anti-abrasion screw head and ring

Variety of screw design

Screw head and ring increased its strength with anti-abrasion materials.
Ceramic-coated screw head provides much better releasing and easier changing of both materials and colors.


DVⅡstandardtype      (100T~360T)
GPⅡsuitable only for RPVC
lower compression ratio type
rare shearing heat
LCsuitable only for RPVC
lower compression ratio type
rare shearing heat
RCquicker and higher compression ratio type for PA
DCsuitable for resin requires transparency most such as PMMA、 PC and so on
less shearing heat
MXeffective for not only mixing but also preventing uneven color by use of master batch



Control

制御_en
